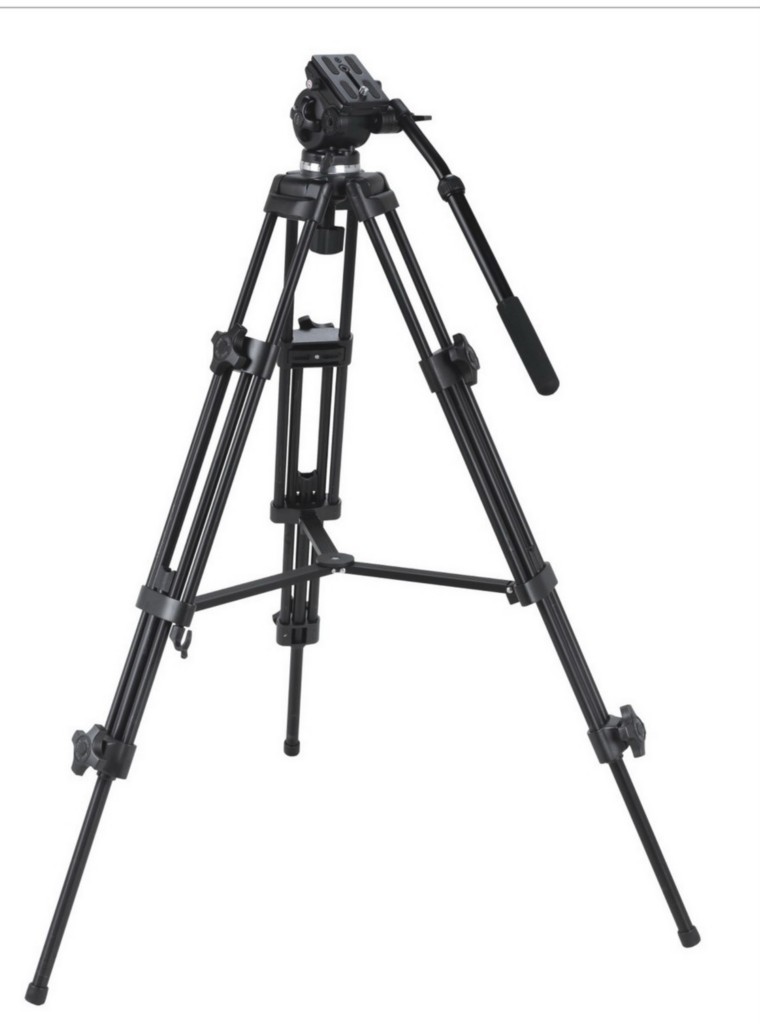

Pro Heavy Duty EI-717 72″ Tripod with Fluid Pan Head & case


SKU: EI-717X Category:



The E-IMAGE EI-717 series, are diecast and machined by exacting specifications for greater stability. Each head is equipped with a fluid damping system. (infinitely or 3 plus 0 step), which provides for ultra -75°/+90° tilt range and +360° pan range. The rigid and light aluminum alloy legs ensure for excellent loading capacity and stability.

A quick release system with a safety lock prevents inadvertent disengagement of the camera latch.

Payload capacity is up to 6kgs ( 13.2 lbs), making it the versatile solution for all DV cameras.

Length when folded: 69cm or 27″
Max height: 165cm or 72″




  • Max operating height: 1605 mm/72″
  • Min operating height: 640 mm/25.6″
  • Folded height: 690 mm/27″
  • Net weight: 4200 g/9 lbs
  • Max. load capacity: 6 kg/13.5 lbs

Ball Head (Separatable) :


  • 85â°/+90â°tilt range and +360â°pan range 75mm bowl
  • Load capacity: 6 kg /13.5 lbs
  • Tripod mounting screw: 1/4″ or 3/8″
  • Fluid drag system ensures smooth, consistent fluid drag control
Model Item Material Tube Diamter Weight Working Height Load Weight
EI717X EI-717 Tripod Aluminum Alloy 0.9″ 9 lbs 25.6″ – 72″ 13.5 lbs



Package includes:

  •  E-Image 72″ EI-717T Tripod x1
  •  E-Image EI-717H Video Head x1 (+ one extra free plate)
  •  E-Image EI-7SH Handle x1
  •  E-Image Tripod Travel Case x1
  •  Original Manufacturer’s Packaging x1



Additional information

Weight 10 kg
